ACO (GO TO K100S TRENCH DRAIN)

HOME DRAIN

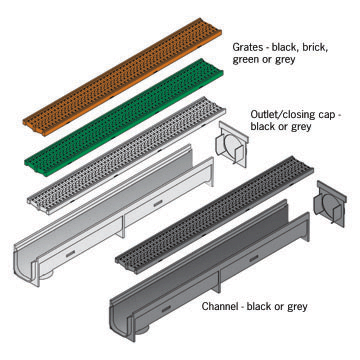

Lightweight, 4" wide, polyethylene channel with matching grate.

  • Attractive lightweight UV resistant polyethylene channel and grate
  • Interlocking end profiles make installation quick and easy
  • Grate snap fits into the channel
  • Dual purpose end cap/outlet caps available
  • Smooth channel surface is easy to clean
  • 4" vertical outlet molded to base of channel

Homedrain Product Data


Description
Part


Length

Width

Height

Weight


No



inches

mm



inches

mm



inches

mm



lbs

Channel with grate black



90860



39.4"

1000



5.3"

135



4.0"

100



6.7





Channel only black
77946
39.4"
1000
5.3"
135
4.0"
100
4.3
Channel only gray   STOCK
HD001
39.4"
1000
5.3"
135
4.0"
100
4.3




Grate only black
30424
39.4"
1000
5.3"
135
-
-
2.4
Grate only gray  STOCK
30433
39.4"
1000
5.3"
135
-
-
2.4
Grate only green
30430
39.4"
1000
5.3"
135
-
-
2.4
Grate only brick
30427
39.4"
1000
5.3"
135
-
-
2.4



Closing / outlet end cap - black

79813

-

-

5.3"

135

4.0"

100

0.5

Closing / outlet end cap - gray  STOCK
HD003
-
-
5.3"
135
4.0"
100
0.5
4" bottom outlet pipe

HD004

-

-

-

-

-

-

2.9





Installation

1. Prepare a trench and fix a line at the required finished height. If channel will be exposed to vehicles, embed base and sides in 4” of good quality concrete.

2. Position outlet channel in the trench and ensure that it is level. Connect outlet pipe to the drain.

3. Lay the remaining channels, working away from outlet, and fit end caps.

4. Place grates upside down in channel and backfill with surrounding surface material.

5. Ensure that the finished surface is approximately 1/8” higher than the channel to assist water drainage. Reposition grates correct way up.
